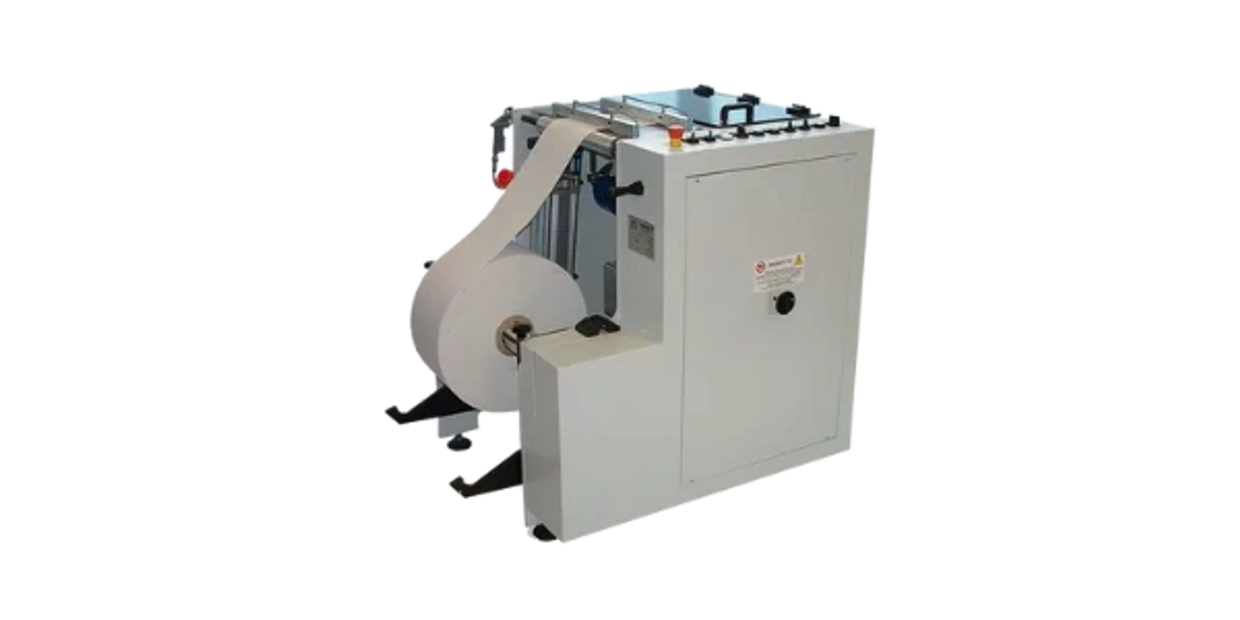

Unwinder UW-430 OT
This flexible unwinder can be installed on line with punching systems, offset printing machines, ink-jet equipments, sheeters, zig-zag folders or rewinders. The standard version can became a personnel modification according to your needs.
- Label unwinder tension free
- Roll shaft with pneumatic expansion
- Roll end sensor
- Connection plate with pneumatic blocks
- Loup controlled by sensors
- Able to work on line with all machines
TECHNICAL SPECIFICATIONS:
- Max roll diameter 1000 mm (40")
- Max working width 430 mm (17") - optional 520 mm (20"), 720 mm (28")
- Standard roll shaft diameter 76 mm (3")
- Material weight range 50/300 g/mq
- Max speed 100 m/min (328 ft/min) - optional 150 m/min (492 ft/min)
- CE standards
- Dimensions WxDxH 120 x 80 x 110 cm (47" x 31" x 43")
- Weight 250 kg (551 lbs)
- Optional: web tension version with electronic web guide control
