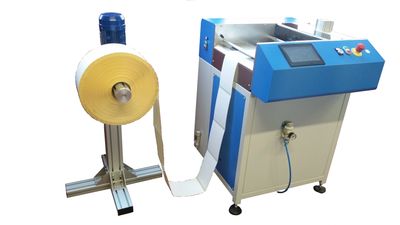

Electronic sheeter for papers and labels model EASY CUT with guillotine cut system.

New sheeter with electronic change size system. Versatile, equipped with long life blades that permits a high cut accuracy through a new generation of brushless motors. It is possible to work with single cut or double cut with waste removal. It is also available a rotary slitting knives unit able to produce 2-up jobs. The cut register, according to sheet size, is always electronically controlled through a label gap/print mark sensor reader. Eliminates gears from size changes. Dynamic offset of the cutting point. The sheeter can also works on line through a sensor (optional). The exit type can be with a fixed table or a belt delivery length cm 120 with job separator.

ADVANTAGES:

• Control with LCD touch screen 7”
• Electronic change size system with sheet length in 0,01 mm (1/784”)
• Setting available: number of labels per sheet
• Cut selection: single cut / double cut
• Horizontal cutting unit driven by pneumatic cylinder
• Label gap reader sensor suitable for die-cut labels
• Print mark/slot sensor for printed materials (option)
• Programmable sheet/lot counters
• Speed ref. on A4 sheet size with single cut: 6.600 sheets/hour
• CE standards

TECHNICAL SPECIFICATIONS:

• Web width: 65/330 mm (2.5"/13")
• Paper, label thickness: 50/300 gsm
• Sheet length range: 50/610 mm (2"/24")
• Length steps: 0,01 mm (1/784”)
• Double cut range: 0,1/50 mm (0.003"/2")
• Single cut speed: 6600 sheets/h
• Double cut speed: 16.700/6.200 sheets/h
• Cutting accuracy approx: +/- mm 0,1 (0.003")
• Max unwind dia m: 600 mm (24")
• Roll axle: 76 mm (3") - option 150 mm (6")
• Dimension WxDxH without unwinder with table: 100 x 90 x 106 cm (39" x 35" x 42")
• Dimension WxDxH without unwinder with belt delivery:

              200 x 90 x 106 cm (78" x 35" x 42")

• Weight: 220 kg (485 lbs)

Unwinder Basic (option):

• max roll size: 600 mm (24”)
• web width: 65/330 mm ( 2.5”/13”)
• roll axle: 76 mm ( 3”) - option 150 mm ( 6”)
• max roll weight: 60 kg / 132 lbs
• speed: 50 m/min (165 ft/min)
• dimensions  WxDxH: 60 x 74 x 109 cm (23" x 29" x 43")
• weight without roll: 30 kg / 66 lbs
