Easy 2 Cut

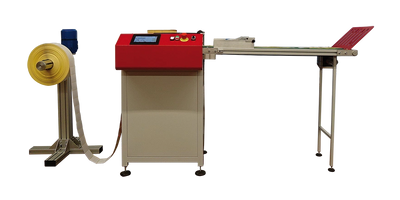

Electronic sheeter for papers and labels model EASY 2 CUT with guillotine cut system.

New sheeter with electronic change size system. Versatile, equipped with long life blades that permits a high cut accuracy through a new generation of brushless motors. It is possible to work with single cut or double cut with waste removal. It is also available a rotary slitting knives unit able to produce 2-up jobs. The cut register, according to sheet size, is always electronically controlled through a label gap/print mark sensor reader. Eliminates gears from size changes. Dynamic offset of the cutting point. The sheeter can also works on line through a sensor (optional). The exit type can be with a fixed table or a belt delivery length cm 120 with job separator.

With this version the double cut goes in separate way under the cutting unit and slitter knives are rotary and motorized. The cutting unit has brushless instead of pneumatic air cylinder.

 ADVANTAGES:

• new control with LCD touch screen 7”
• Electronic change size system with sheet length in 0,01 mm  ( 1/784”)
• Setting available: number of labels per sheet
• Cut selection: single cut / double cut
• Label gap reader sensor suitable for die-cut labels
• Print mark/slot sensor for printed materials
• Programmable sheet/lot counters
• Speed ref. on mm 50,0 sheet length with single cut: 25.000 sheets/hour
• Speed ref. on mm 304,8 sheet length with single cut: 13.500 sheets/hour
• Speed ref. on mm 610,0 sheet length with single cut: 7.500 sheets/hour
• CE standards

TECHNICAL SPECIFICATIONS:

• Web width: 65/330 mm (2.5"/13")
• Sheet length range: 50/610 mm (2"/24")
• Length steps: 0,01 mm (1/784”)
• Double cut range: 0,1/50 mm (0.003"/2")
• Single cut speed: 25.000 / 7.500 sheets/h
• Double cut speed: 16.700 / 6.200 sheets/h
• Cutting accuracy approx: +/- mm 0,15
• Max unwind dia m:  600 mm (24")
• Roll axle:   76 mm (3") - option 150 mm (6")
• Dimension WxDxH without unwinder with table: 110x90x106 cm (43"x35"x42")
• Dimension WxDxH without unwinder with belt delivery: 200x90x106 cm (78"x35"x42")
• Weight: 220 kg (485 lbs)

Unwinder Basic (option):

• max roll size: 600 mm (24”)
• web width: 65/330 mm ( 2.5”/13”)
• roll axle: 76 mm ( 3”) - option 150 mm ( 6”)
• max roll weight: 60 kg / 132 lbs
• speed: 50 m/min (165 ft/min)
• dimensions  WxDxH: 60x74x109 cm (2 x 2.5 x 3.6 ft)
• weight without roll: 30 kg (66 lbs)
